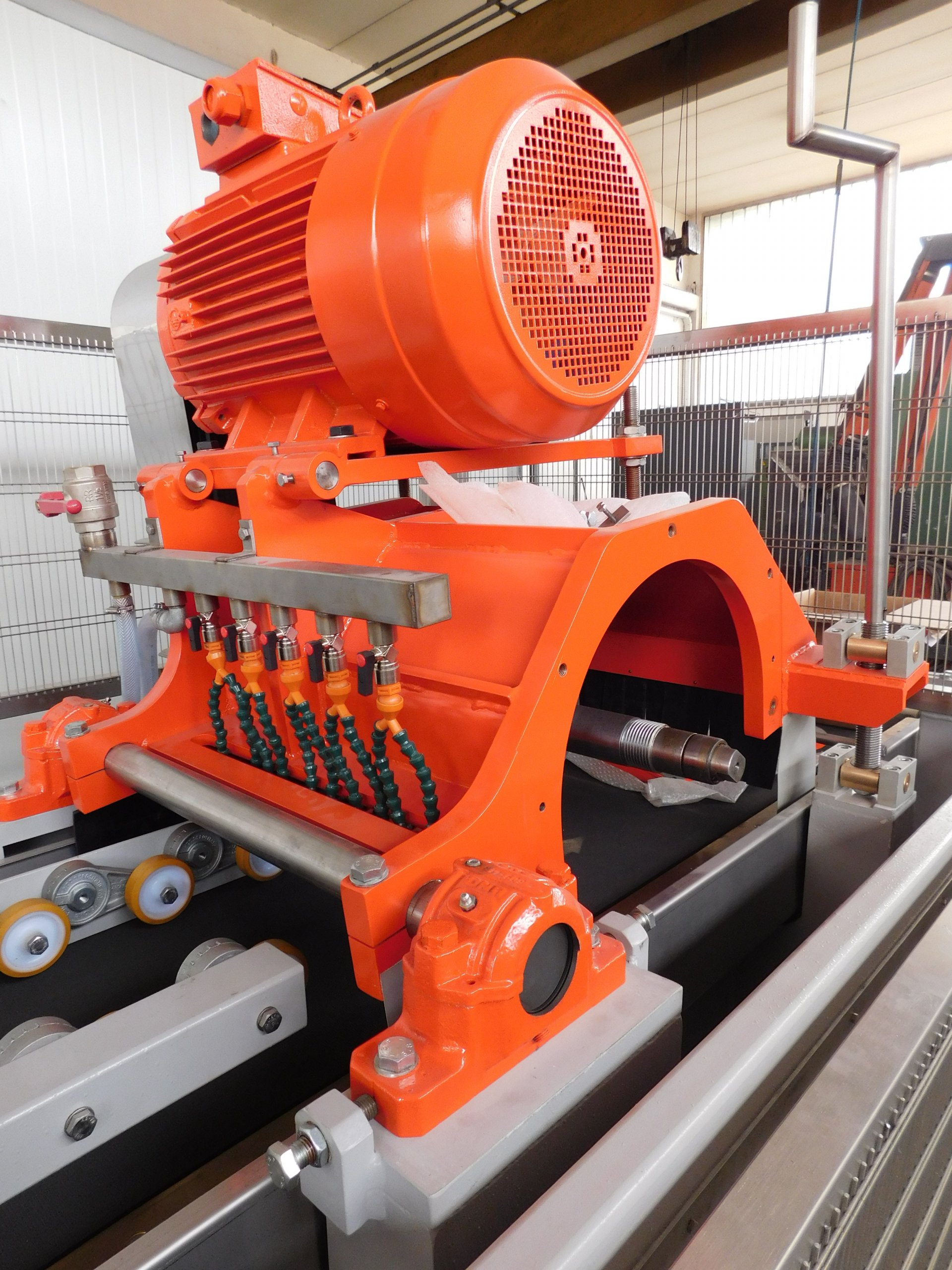

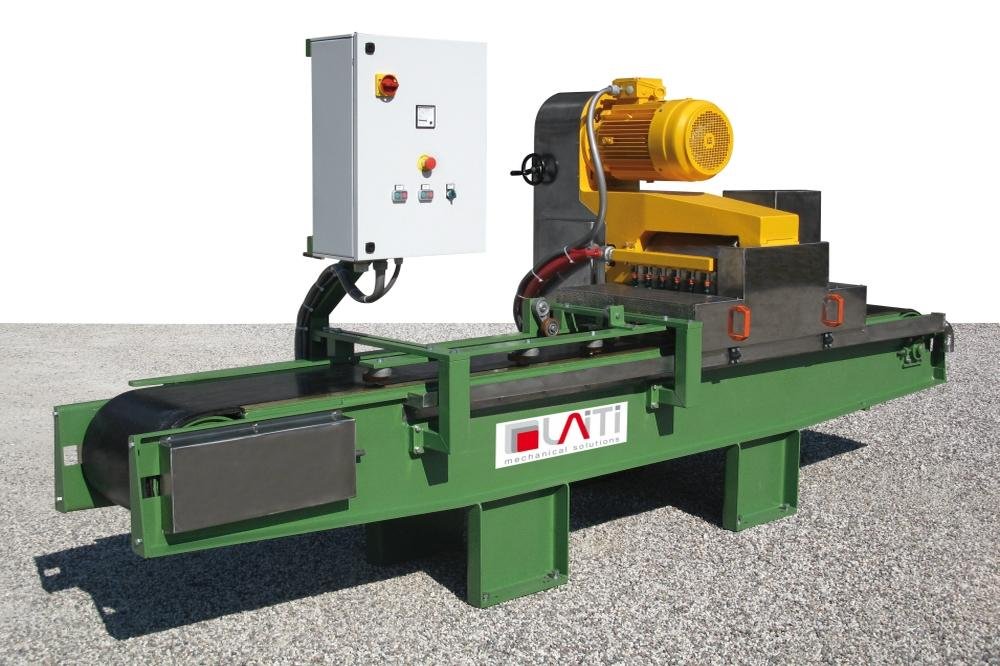

LRZ 400Trimmig machine for skirtings
Trimmer with the possibility of mounting multiple disks on the shaft so as to cut more strips of marble or granite.
Machine particularly suitable for cutting skirtings.

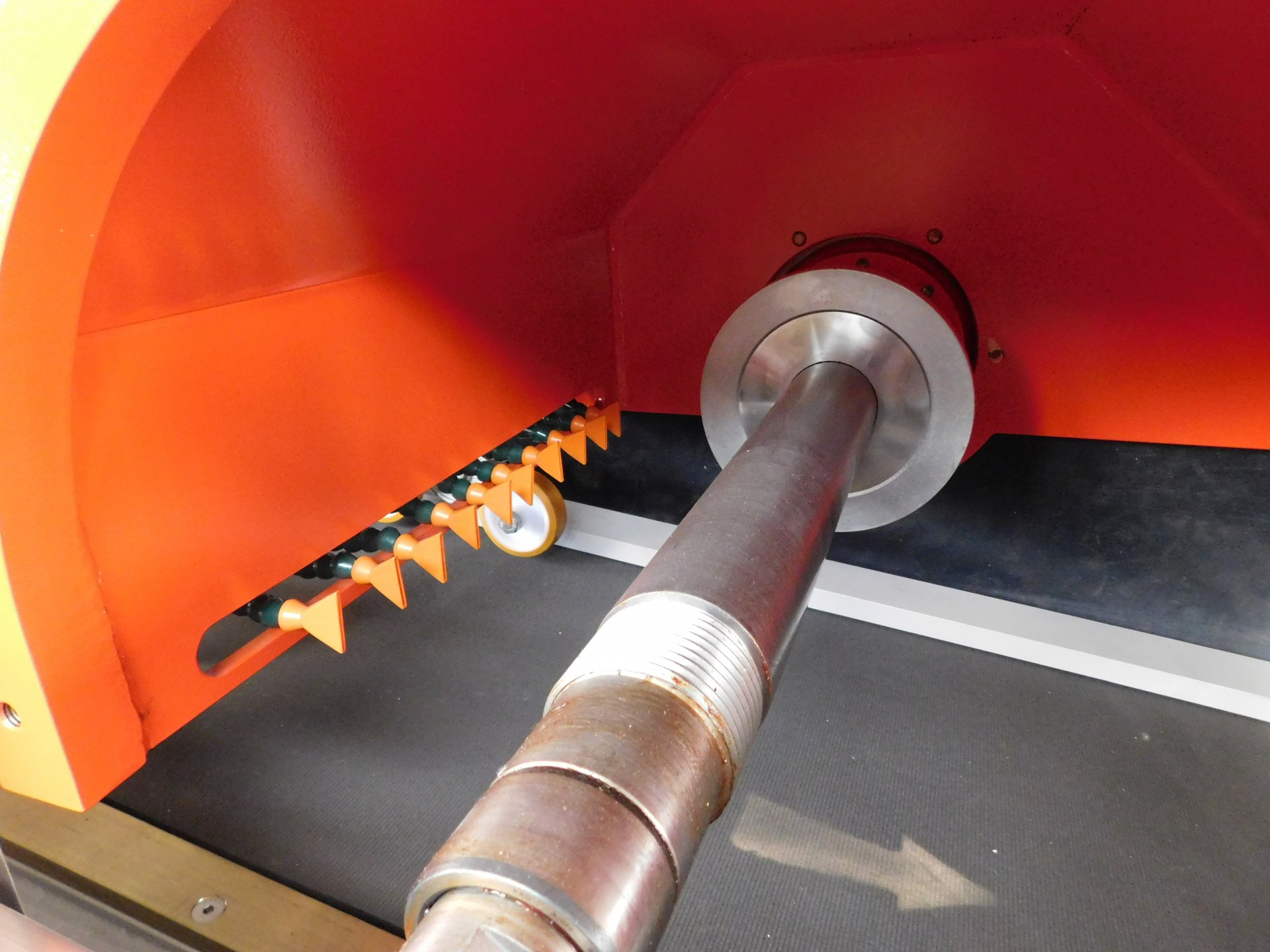

The discs are mounted on the shaft with aluminium spacers and the disc pack is secured with a precision bearing to prevent vibrations and shaft deflections.
All protections and guards for water are made of stainless steel.
It is possible to produce versions with customized discs, powers and operating measurements.
| TRIMMING MACHINE FOR BIG THIKNESSES | Mod. LRZ 400 |
| Before disks diameter | mm 400 |
| Disks motor power | Kw 22 |
| Max strip thickness | mm 60 |
| Useful cutting width | mm 400 |
| Machine length | mm 4000 |
| Machine width | mm 1400 |
| Max height to the flor | mm 1600 |
| Total installed power | Kw 22 |
| Weight of the machine | Kg 2400 |
