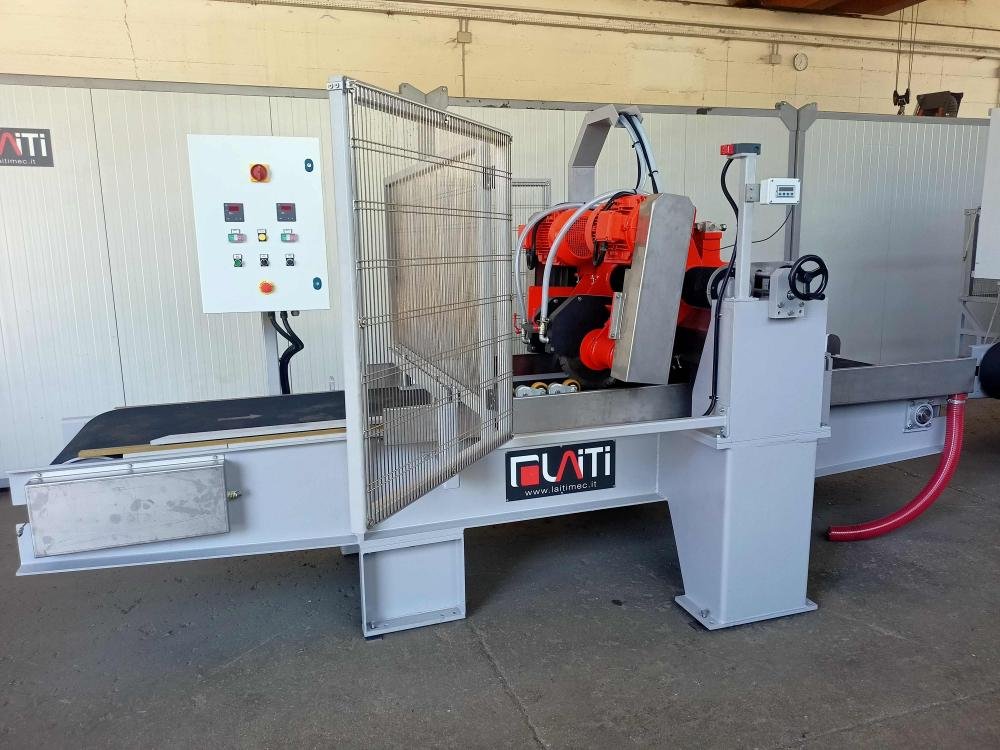

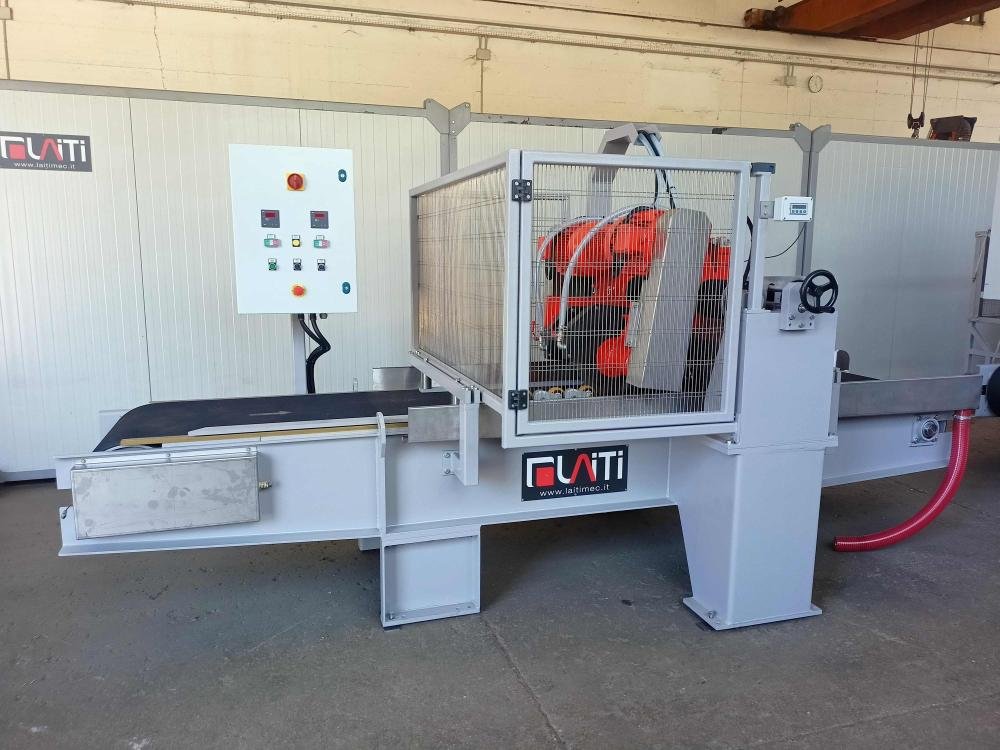

LR 600/2Trimmer with two adjustable-width cutting units.

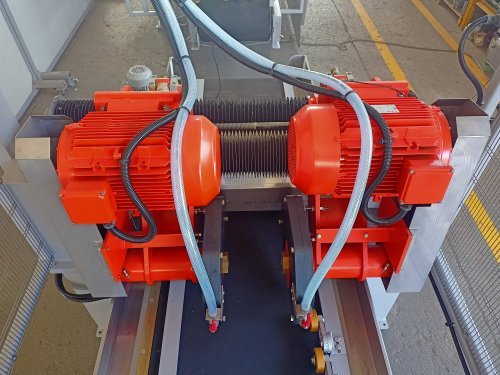

LR 600/2 is a trimmer with two adjustable-width cutting units. There are 2 spindles with belt transmission and quality bearings .
The height adjustment of the discs is via a pendulum system, which avoids rust or various blockage issues.

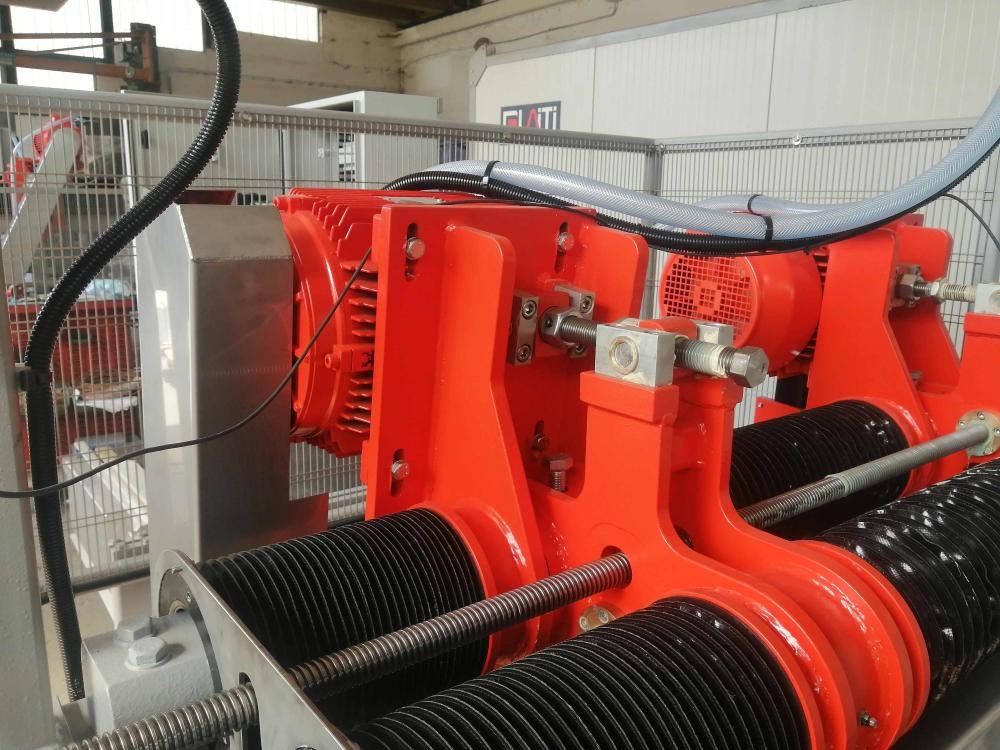

The cutting units move on 100 mm chrome bars and are covered by circular bellows.
Movement is manually operated by means of maneuvering screws driven by a crank on the side of the upright near to the operator.
The cutting width is displayed on an electronic counter.
There is an ammeter for each motor in order to check the exertion of the disc.
The disc casings are of plastic to minimize machine noise.
All protections and guards for water are made of stainless steel.
It is possible to produce versions with customized discs, powers and operating measurements.
| RIFILATRICE LR 600/2 | Mod. LR 600/2 |
| Disks diameter | mm 350 |
| Disks motor power | Kw 7,5* |
| Max strip thickness | mm 70 |
| Useful cutting width | mm 600 |
| Machine length | mm 4000 |
| Machine width | mm 2100 |
| Max height to the flor | mm 2000 |
| Total installed power | Kw 16 |
| Weight of the machine | Kg 2600 |
LR 600/2 is a trimmer with two adjustable-width cutting units. There are 2 spindles with belt transmission and quality bearings .
The height adjustment of the discs is via a pendulum system, which avoids rust or various blockage issues.
The cutting units move on 100 mm chrome bars and are covered by circular bellows.
Movement is manually operated by means of maneuvering screws driven by a crank on the side of the upright near to the operator.
The cutting width is displayed on an electronic counter.
There is an ammeter for each motor in order to check the exertion of the disc.
The disc casings are of plastic to minimize machine noise.
All protections and guards for water are made of stainless steel.
It is possible to produce versions with customized discs, powers and operating measurements.
