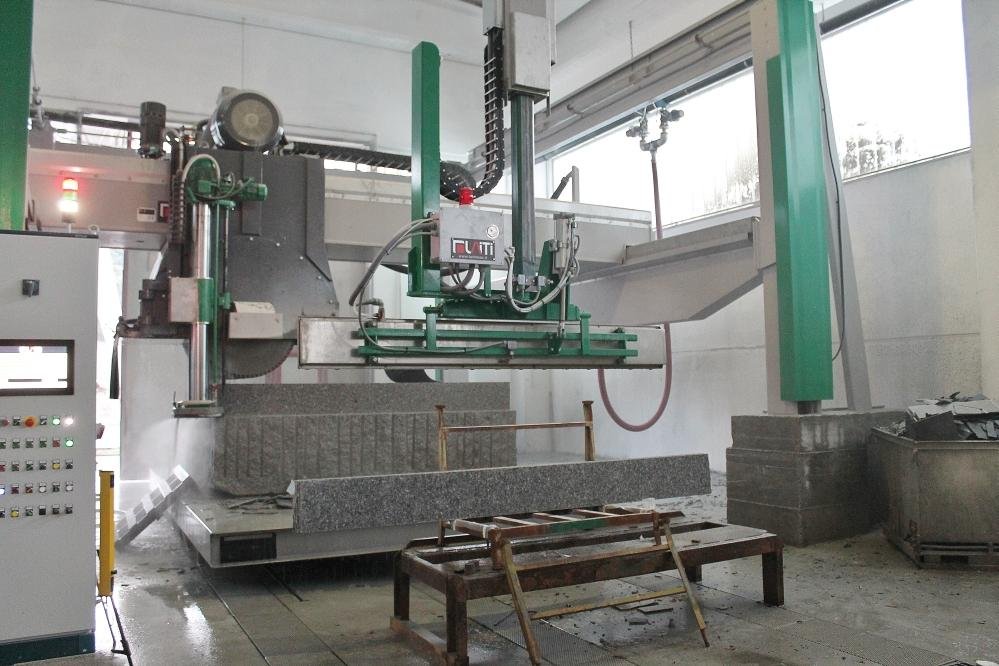

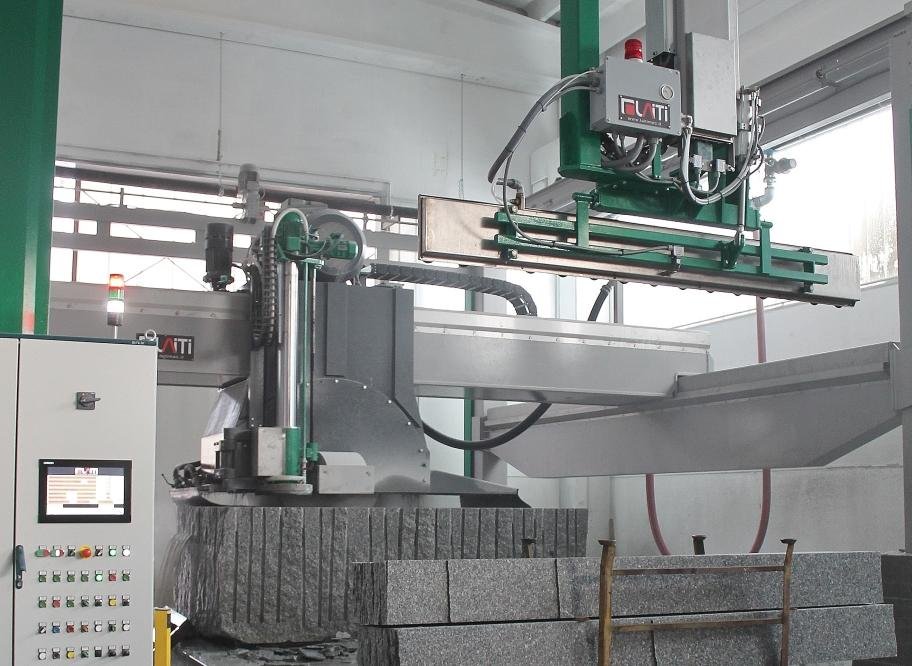

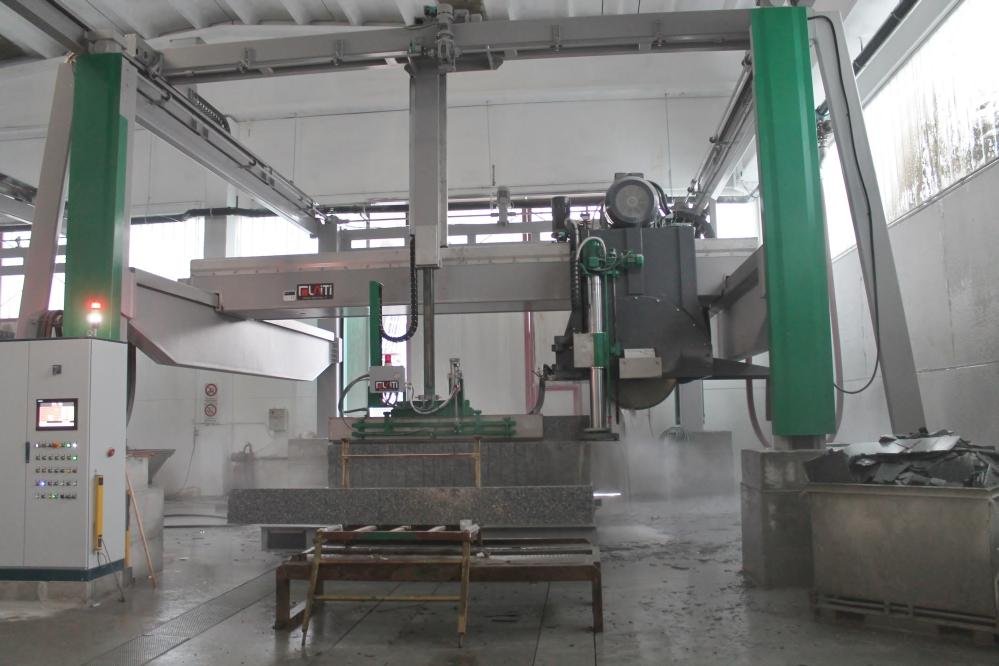

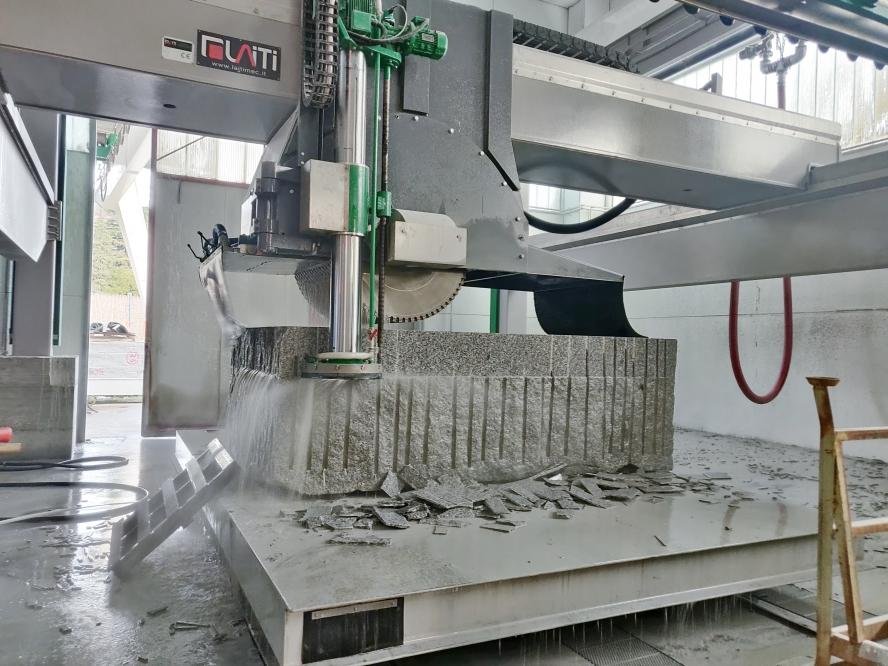

LG 50/1600Block cutter for granite
The granite cutter has always been our forte, the machine that has made the history of our company.
Continuous improvements and refinements have made this a superb quality product.
We can summarize this product in three adjectives: robust, precise, reliable.

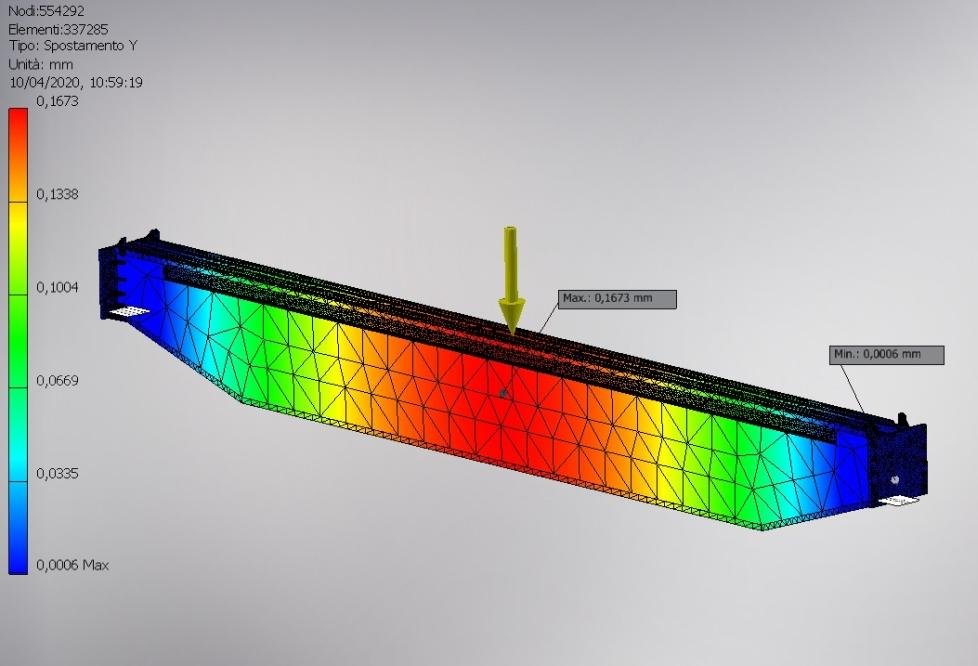

ROBUST: High sheet thicknesses, structures designed to minimize vibrations during cutting, gearing for the advancement of extra large discs to withstand significant loads and reversals in movement.

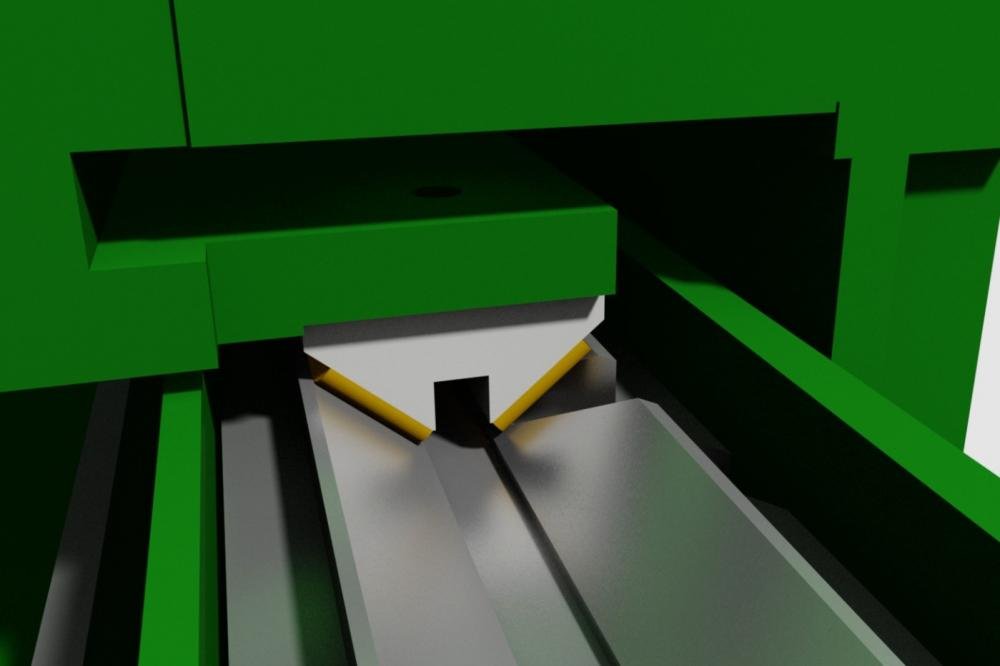

PRECISE: Disc trolley feed on V-form guides in an oil bath covered by stainless steel casing. This system has proved to be far better than wheeled models and provides tremendous advantages both for duration and cutting precision. Lateral displacement with inverter controlled precision gearing, movement on calibrated rollers in an oil bath covered by thermo-welded bellows.

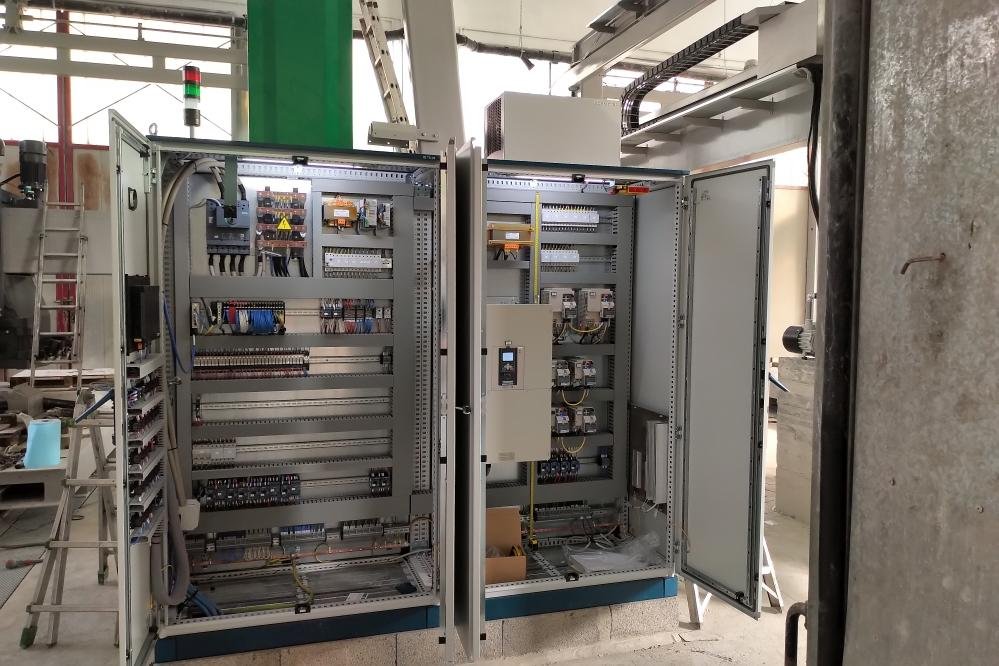

RELIABLE: Mechanical and electronic components of the highest quality, selected thanks to experience gained over 40 years.
Fast and easy access to parts to be repaired or lubricated.
To ensure maximum engine life in a very corrosive workplace, the entire structure is treated by sand-blasting and application of thick epoxy primer and epoxy enamel.
| BLOCK CUTTER FOR GRANITE | Mod. LG 50/1600 |
| Max vertical disk diameter | mm 1600 |
| Max disks number | n° 54 |
| Discs stack | mm 1000 |
| Max strip width | mm 610 |
| Vertical disk motor power | Kw 160 |
| Max longitudinal cut | mm 3700 |
| Machine length | mm 10200 |
| Machine width | mm 7940 |
| Max height to the flor | mm 6400 |
| Total installed power | Kw 170 |
| Weight of the machine | Kg 24000 |
